    Power Station Renewable Energy Solar Panel Photovoltaic Energy System

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : LY-565-585N8S72AH
    Supply Ability : 1000 Pallet/Pallets per Day
    Price : $0.23/watts 10000-99999 watts
    • Product Details
    • Company Profile

    Power Station Renewable Energy Solar Panel Photovoltaic Energy System

    China wholesale good price power station energy system photovoltaic solar panels for solar farm system

    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Products Description
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Structural Parameters
    Cells
    144pcs 182x91mm Monocrystalline solar cells
    Module Dimension
    2279x1134x35mm(LxWxH)
    Module Weight
    29.1kg
    frame
    Anodized aluminum profile
    Junction Box
    Rated current:25A,IP68,TUV
    Cable
    Length Negative 400mm/Positive 300mm
    Connector
    Compatible with MC4
    STC
    Maximum Power (Pmax)
    565W
    570W
    575W
    580W
    585W
    Maximum Power Voltage (Vmp)
    41.92V
    42.07V
    42.22V
    42.37V
    42.52V
    Maximum Power Current (Imp)
    13.48A
    13.55A
    13.62A
    13.69A
    13.76A
    Open-circuit Voltage (Voc)
    50.60V
    50.74V
    50.88V
    51.02V
    51.16V
    Short-circuit Current (Isc)
    14.23A
    14.31A
    14.39A
    14.47A
    14.55A
    Module Efficiency STC (%)
    0.2187
    0.2207
    0.2226
    0.2245
    0.2265
    STC
    Irradiance 1000W/m2,cell temperature 25¡AM1.5G
    Operating Conditions
    Maxi System Voltage
    1000V/1500V DC
    Temperature range
    -40°C~+85°C
    Series Fuse Rating
    25A
    NOTC
    45±2℃
    Temperature Coefficient of Isc(α-Isc)
    +0.033%/℃
    Temperature Coefficient of Voc(β-Voc)
    -0.29%/℃
    Temperature Coefficient of Pmax(Y-Pmp)
    -0.39%/℃
    Product Categories
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System

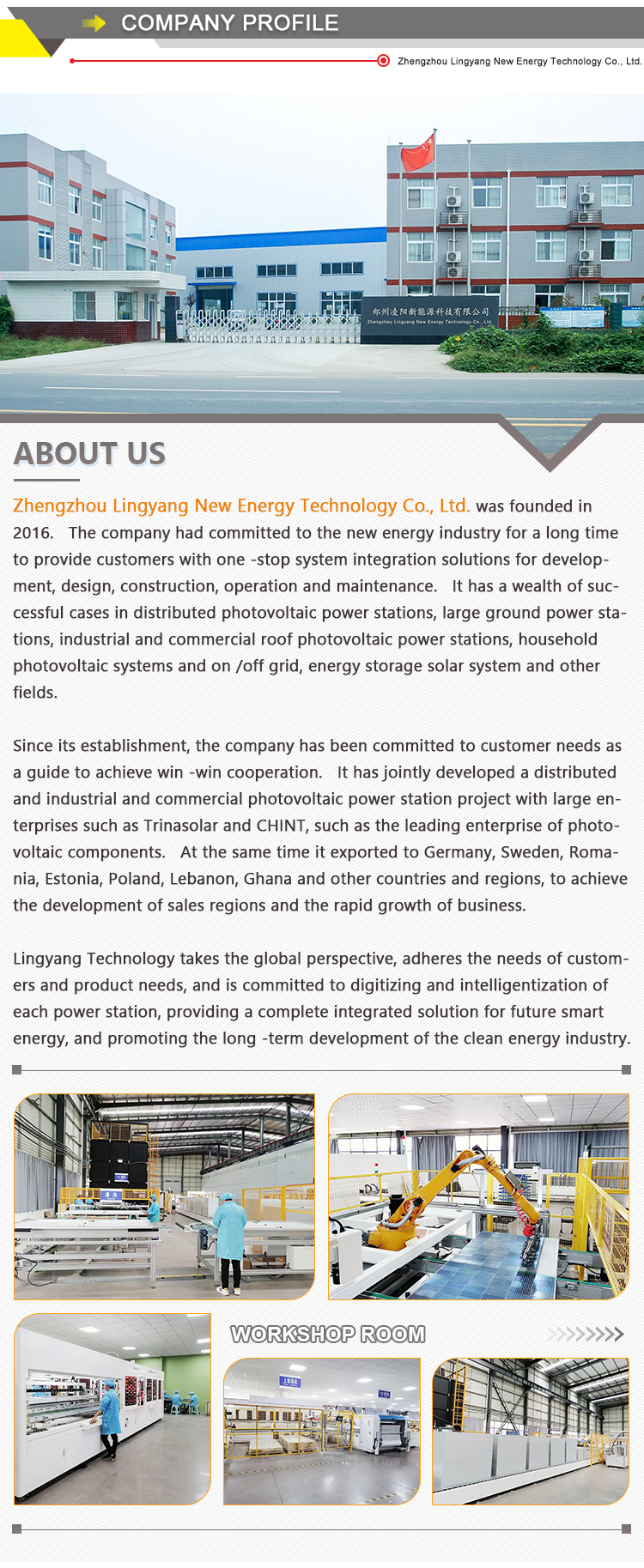

    Company Profile
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    Packing and Shipping
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    FAQ
    Power Station Renewable Energy Solar Panel Photovoltaic Energy System
    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your payment.
