Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting

Zhengzhou LingYang New Energy Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers

    Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers
    • Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers
    • Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers
    • Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers
    • Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers
    • Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers
    • Buy cheap Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting from wholesalers

    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 30kw off grid
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.75/watts 15000-29999 watts
    • Product Details
    • Company Profile

    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting

    Competitive price 5kw 10kw 20kw 25kw 30kw energy storage mounting ground mini home use solar system off-grid

    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    General mode:
    The off grid power solar system is that the electric generate from the PV array will provide the load first,the excess electric will charge the battery,when the PV electric is not sufficient ,the battery will provide the load.
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    Product List
    20KW Off Grid Solar
    25KW Off Grid Solar
    30 Off Grid Solar
    PV module
    36pcs*550W
    45pcs*550W
    654pcs*550W
    PV combiner box
    4 Input 1 output
    5 Input 1 output
    4 Input 1 output
    Inverter
    4PCS*5KW Parallel with 20kw
    5PCS*5KW Parallel with 25KW
    6PCS*5KW Parallel with 30KW
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    Lithium Battery
    Lithium Battery
    Battery Voltage
    Lithium Battery 48V 200ah
    48VDC
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Product List
    5KW Off Grid Solar
    10KW Off Grid Solar
    15KW Off Grid Solar
    PV module
    9pcs*550W
    18pcs*550W
    27pcs*550W
    PV combiner box
    1 Input 1 output
    2 Input 1 output
    3 Input 1 output
    Inverter
    5KW off grid solar inverter
    2PCS*5KW Parallel with 10kw
    3PCS*5KW Parallel with 15kw
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    Lithium Battery
    Battery Voltage
    Lithium Battery 48V 200ah
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Solar Panel
    1.Power:540~560W
    2.The quantity of Cell:144PCS
    3.Solar cells size:182*91mm
    4.Dimensions:2279x1134x35mm(LxWx H)
    5.Open Circuit Voltage-Voc[V]:49.90V
    6.Short Circuit Current-lsc[A]:14.00A
    7.Max Power Voltage-Vmp[V]:41.96V
    8.Max Power Current-lmp[A]:13.11A
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Off Grid Inverter
    1. Rate Power: 5000W
    2.Battery Voltage:48VDC
    3.Battery Type:Lithium/Lead-acid
    4. Parallel Capability:Yes, max 6 units
    5.AC Voltage Regulation:230VAC ± 5% @ 50/60Hz
    6. Surge Power:10000VA
    7.Efficiency (Peak):93%
    8.Waveform:Pure sine wave
    9. Transfer Time:10ms typical, 20ms Max
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting

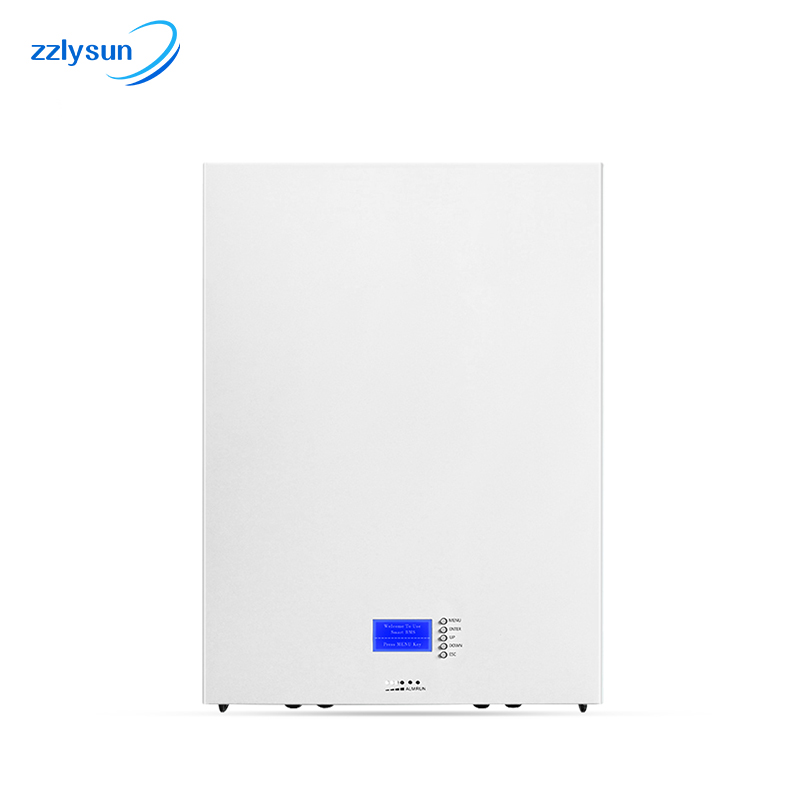

    Wall Mounted LiFePo4 Battery
    * 15-20 years design life. Up to 6000 + cycle Ilfe
    * Wall mount or ground stack brick, simply connecting to inverter
    * Battery module is scalable for any larger storage system.
    * Battery modular built in high quality BMS. Protect battery cells all the way.
    *Lithium iron phosphate battery cell, stay safe with battery storage at home.
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Accessories
    1.PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar
    /Breaker 63A1000V)
    2.MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC
    3.PV DC Cable
    4mm2 or 6mm2
    4.Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Mounting Bracket
    1.Good Appearance
    2.Easy and flexible installation.
    3.Diversified design
    4.Light dead-weight
    5.Save installation materials
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    Application
    The off grid solar system is suitable for the place which are no grid of remote place or the local grid is unstable.
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Quality gurantee
    The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    Mini Off Grid Solar Energy System 25KW 30KW Energy Storage Ground Mounting
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ

    1.What kind of product can you provide ?

    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?

    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?

    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?

    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.

    5.How many days will the product delivery?

    Re:All the package will shipped within 10~20 working days after your deposit of payment.
