    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 25kw/30kw off grid solar system
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.60/watts 25000-49999 watts
    • Product Details
    • Company Profile

    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW

    Off Grid Solar System Complete Kit 25KW 30KW Off Grid Solar Energy System

    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW

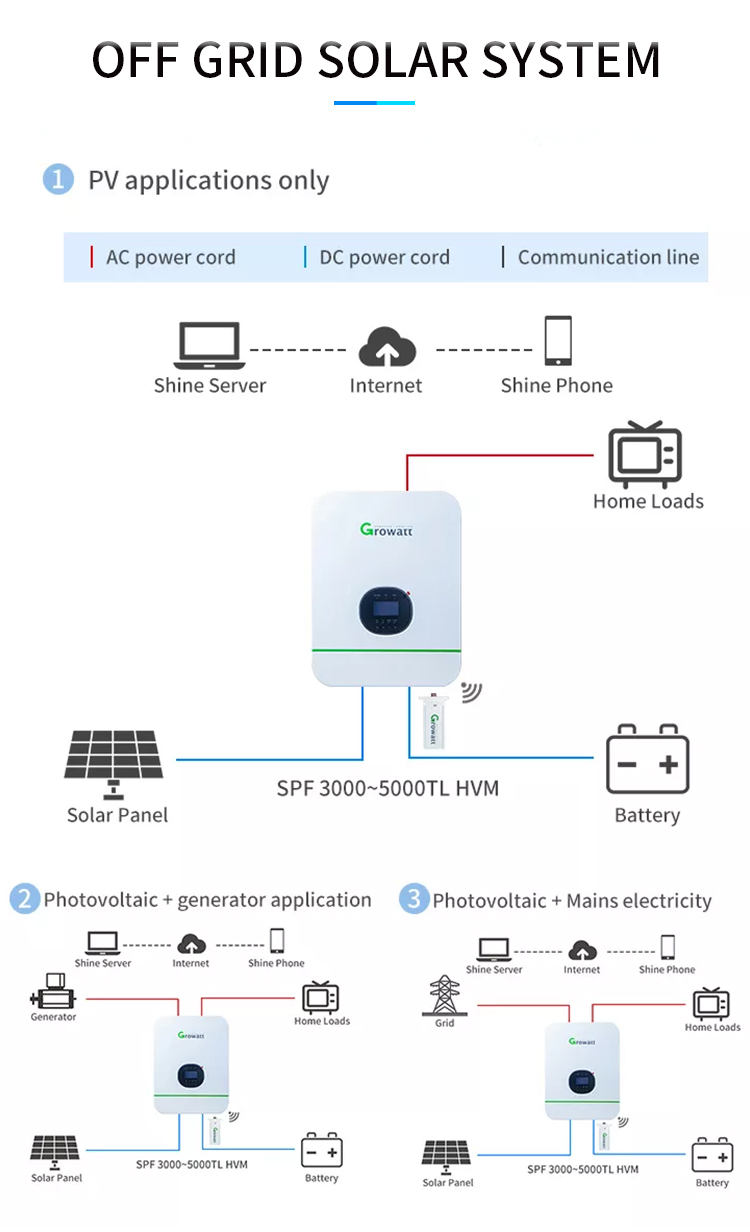

    General mode:
    The off grid power solar system is that the electric generate from the PV array will provide the load first,the excess electric will charge the battery,when the PV electric is not sufficient ,the battery will provide the load.
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    Product List
    25KW Off Grid Solar
    30KW Off Grid Solar
    PV module
    45pcs*550W
    54pcs*550W
    PV combiner box
    5 Input 1 output
    6 Input 1output
    Inverter
    5PCS*5KW Parallel with 25KW
    6PCS*5KW Parallel with 30KW
    Monitor
    Wifi Module
    Wifi Module
    Battery
    Lithium Battery /Lead Aid gel battery
    Lithium Battery /Lead Aid gel battery
    Battery Voltage
    48VDC
    48VDC
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    MC4 Connector,PV cable,Installations
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    ❖ Solar Panel
    * Power:540~560W
    * The quantity of Cell:144PCS
    * Solar cells size:182*91mm
    * Dimensions:2279x1134x35mm(LxWx H)
    * Front Glass:3.2mm high transmisson tempered glass
    * Container type:40HQ
    * No. of modules per container:620PCS
    * No. of modules per pallet:31PCS
    * No. of pallets per container:20
    * Packaging box size (LxWxH)[mm]:2300x1145x1260MM
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW

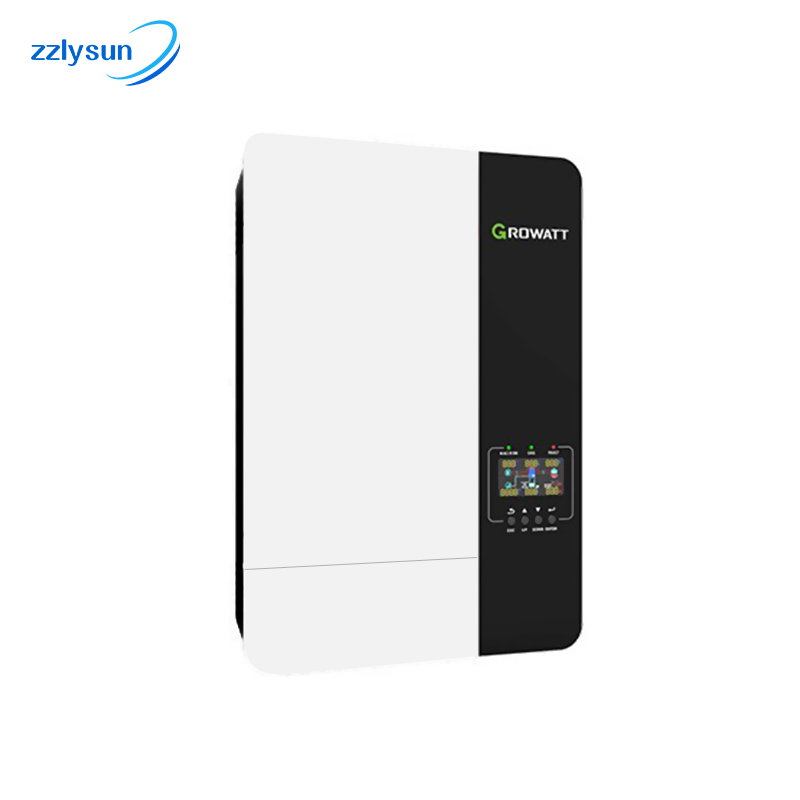

    ❖ Off Grid Inverter
    * Rate Power: 5000W
    * Battery Voltage:48VDC
    * Battery Type:Lithium/Lead-acid
    * Parallel Capability:Yes, max 6 units
    * AC Voltage Regulation:230VAC ± 5% @ 50/60Hz
    * Surge Power:10000VA
    * Efficiency (Peak):93%
    * Waveform:Pure sine wave
    * Transfer Time:10ms typical, 20ms Max
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    ❖ Lead Aid Battery
    * Voltage:12V
    * Capacity:100AH/ 200AH
    * Application:Solar energy system
    * Cycle Life:500-1200cycles
    * DOD:50%
    * Weight:29kg/46kg
    * Size:330*171*217/225mm
    /522*240*219/225mm
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    ❖ Accessories
    * PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar
    /Breaker 63A1000V)
    * MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC
    * PV DC Cable
    4mm2 or 6mm2
    * Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW

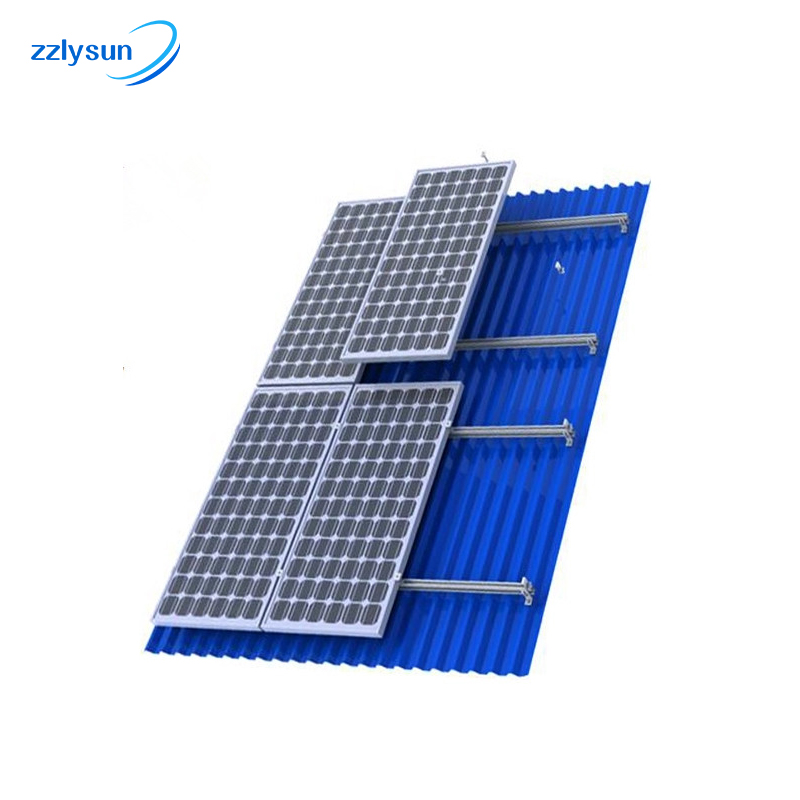

    ❖ Mounting Bracket
    * Good Appearance
    * Easy and flexible installation.
    * Diversified design
    * Light dead-weight
    * Save installation materials
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    Application
    The off grid solar system is suitable for the place which are no grid of remote place or the local grid is unstable.
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    ❖ Quality gurantee
    The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW

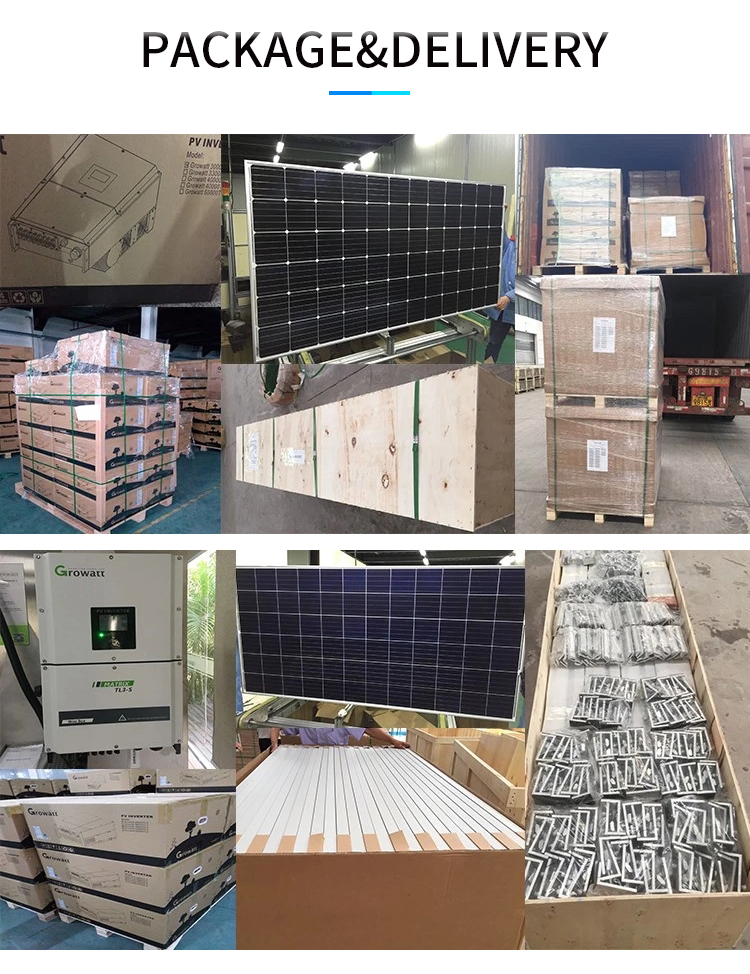

    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    Roof Mounting Off Grid Solar Energy System Complete Kit 25KW 30KW
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ

    1.What kind of product can you provide ?

    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?

    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?

    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?

    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.

    5.How many days will the product delivery?

    Re:All the package will shipped within 10~20 working days after your deposit of payment.
