    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 12kw hybrid solar system
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.25/watts 10000-29999 watts
    • Product Details
    • Company Profile

    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System

    Supplier high quality hybrid photovoltaic balcony high efficiency energy electric solar panel system

    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    General mode:
    When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid.
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System

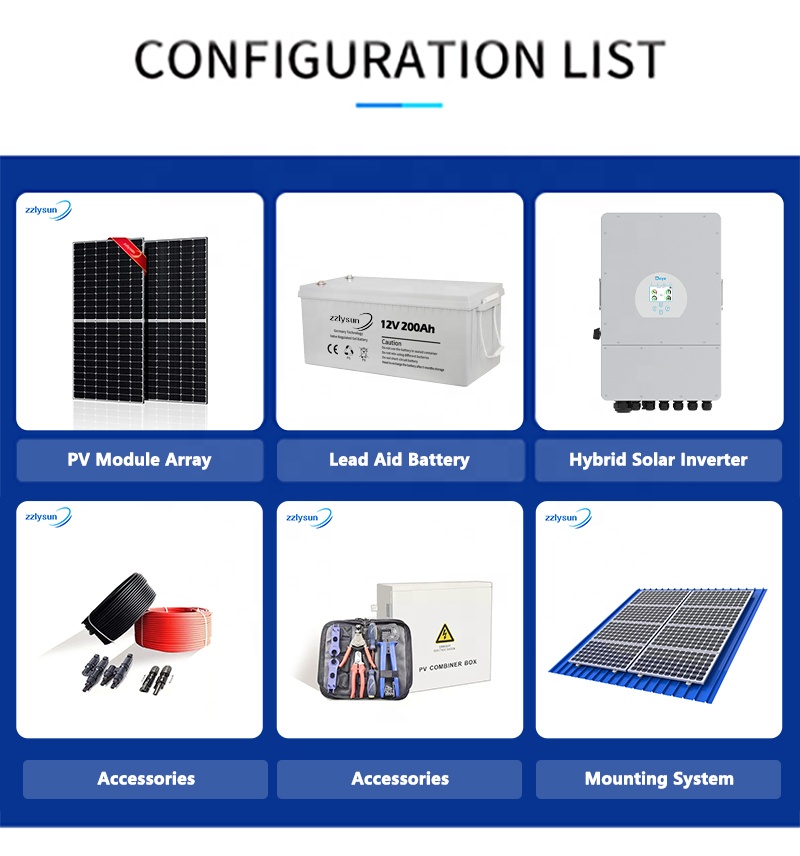

    Product List
    8kw hybrid solar system
    10kw hybrid solar system
    12kw hybrid solar system
    PV module
    450w*18pcs
    450w*22pcs
    450w*26pcs
    PV combiner box
    2 Input 2 output
    2 Input 2 output
    2 Input 2 output
    Inverter
    Deye hybrid inverter 8kw
    Deye hybrid inverter 10kw
    Deye hybrid inverter 12kw
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    Lead Aid battery 48V 200ah
    Lead Aid battery 48V 200ah
    Lead Aid battery 48V 200ah
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Product List
    5kw hybrid solar system
    6kw hybrid solar system
    7kw hybrid solar system
    PV module
    455w*11pcs
    455w*13pcs
    455w*16pcs
    PV combiner box
    1 Input 1 output
    1 Input 1 output
    1 Input 1 output
    Inverter
    Deye hybrid inverter 5kw
    Deye hybrid inverter 6kw
    Deye hybrid inverter 7kw
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    Lead Aid battery 48V 200ah
    Lead Aid battery 48V 200ah
    Lead Aid battery 48V 200ah
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Solar Panel
    1.Power:445~470W
    2.The quantity of Cell:144PCS
    3.Solar cells size:166*83mm
    4.Dimensions:2094x1038x35mm(LxWx H)
    5.Open Circuit Voltage-Voc[V]:49.56V
    6.Short Circuit Current-lsc[A]:11.32A
    7.Max Power Voltage-Vmp[V]:41.21V
    8.Max Power Current-lmp[A]:10.08A
    9.Module Efficiency:20.47%
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System

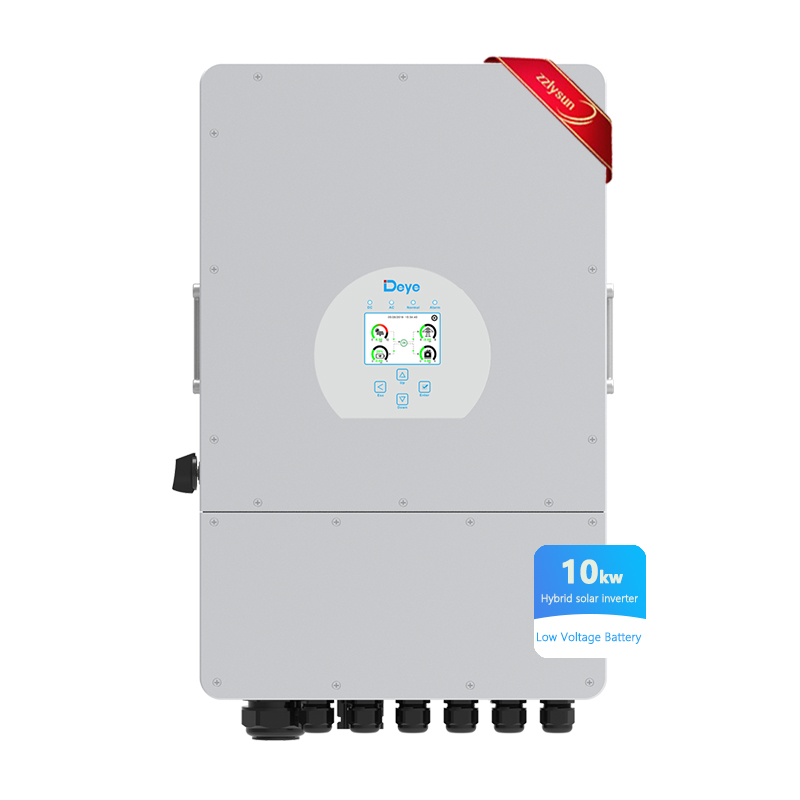

    ❖ Hybrid Grid Solar Inverter
    1. Rate Power: 5kw/6KW/7KW/8KW/10KW/12kw
    2. MPP voltage range:160V-800V
    3. AC Voltage Regulation:220V/380V,
    4. AC grid frequency:50Hz/60Hz
    5. Max PV Power:
    5.5KW/6.5KW/7.8KW/10.4KW/13KW/15.6KW
    6. Battery Type:Lead-acid or Lithium-ion
    7. AC grid connection type:3W+N+PE
    8. Battery Voltage Range (V):40~60V
    9. No. of MPP trackers:2pcs
    10. Max. input current per MPP tracker:13A
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Lead Aid Battery
    * Voltage:12V
    * Capacity:12V 100AH/12V 150AH/12V 200AH/
    12V 250AH/
    *Size:330*171*217/484*170*241/522*240*219/520*269*220/
    * Solar and wind energy storage system
    * EPS and UPS battery backup
    * Signal system,emergency lighting system,security system
    * Telecommunication euipment
    * Power plant and transmission system
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Accessories
    1. PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar
    /Breaker 63A1000V)

    2. MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC

    3. PV DC Cable
    4mm2 or 6mm2

    4. Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Mounting Bracket
    1. Good Appearance
    2.Easy and flexible installation.
    3.Diversified design
    4.Light dead-weight
    5.Save installation materials
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    Peak valley arbitrage model
    The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Solar System
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Quality gurantee
    The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    Photovoltaic Hybrid Solar Energy System Balcony Energy Electric Solar System
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ

    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
    including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your payment.
