    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 40kw/50kw on grid
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.25/watts 40000-199999 watts
    • Product Details
    • Company Profile

    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel

    Solar Power Stations 40kw 50kw on grid solar system with Sungrow Solar inverter

    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel

    General mode:
    Home on grid solar system is the power from PV Array will be provided by the load,the excess electric can be fed to the grid,it is suitable for the country which the local grid is stability.
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    Product List
    40kw on grid solar
    50kw on grid solar
    PV module
    550w*72pcs
    550w*90pcs
    PV combiner box
    4 Input 4 output
    6 Input 6 output
    Inverter
    Growatt on grid 40kw
    Growatt on grid 50kw
    Monitor
    Wifi Module
    Wifi Module
    Battery
    No
    No
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel

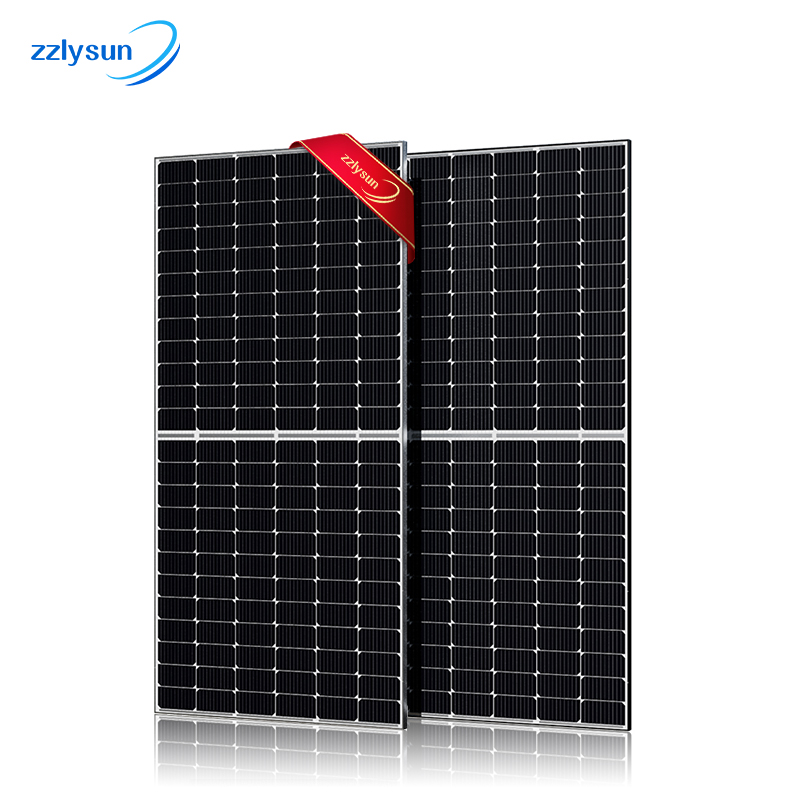

    ❖ Solar Panel
    * Power:540~560W
    * The quantity of Cell:144PCS
    * Solar cells size:182*91mm
    * Dimensions:2279x1134x35mm(LxWx H)
    * Front Glass:3.2mm high transmisson tempered glass
    * Container type:40HQ
    * No. of modules per container:620PCS
    * No. of modules per pallet:31PCS
    * No. of pallets per container:20
    * Packaging box size (LxWxH)[mm]:2300x1145x1260MM
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    ❖ On Grid Solar Inverter
    * Rate Power: 40KW/50KW
    * MPP voltage range:200V-1000V
    * AC Voltage Regulation:220V/380V,
    * AC grid frequency:50Hz/60Hz
    * AC voltage range:312 – 528 V
    * MPPT Efficiency :99%
    * AC grid connection type:3W+N+PE
    * Nominal voltage:585V
    * No. of MPP trackers:4pcs/5pcs
    * Max. input current per MPP tracker:26A
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel

    ❖ Accessories
    * PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar
    /Breaker 63A1000V)

    * MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel

    ❖ Accessories
    * PV DC Cable
    4mm2 or 6mm2

    * Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    ❖ Mounting Bracket
    * Good Appearance
    * Easy and flexible installation.
    * Diversified design
    * Light dead-weight
    * Save installation materials
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    Advantage
    The home on grid soar system are suitable for the country,which are the payment bill is expensive .It can save the pay bill without the battery investment ,the excess electric can fed to the grid for earnings.
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    ❖ Quality gurantee
    The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    40KW 50KW On Grid Solar System With Monocrystalline Silicon Panel
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ
    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,
    will let us freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your payment.
