    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 200KW/250KW
    Supply Ability : 1000 Pallet/Pallets per Day
    Price : $0.70/watts 100000-199999 watts
    • Product Details
    • Company Profile

    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

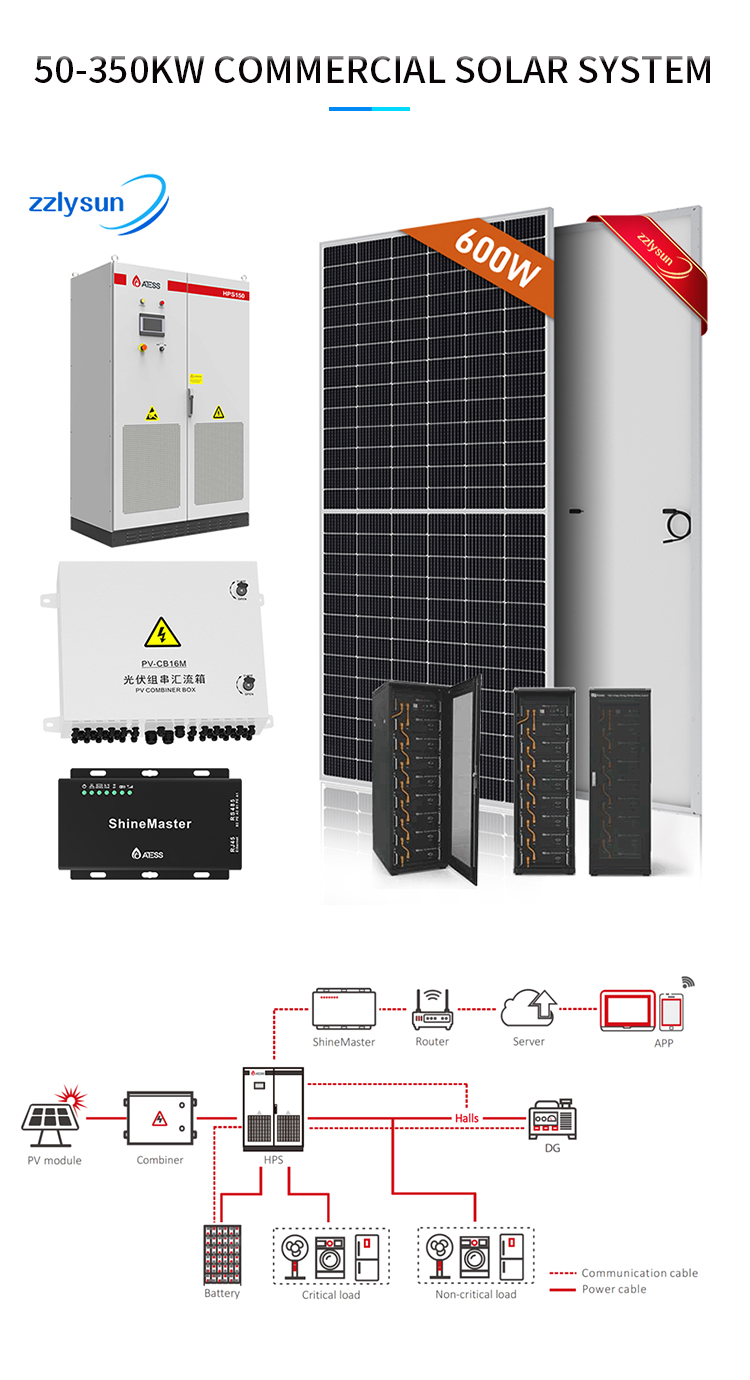

    Grid tie industrial solar panels system 200kw 250kw solar system

    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

    General mode:
    Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ITEM
    200KW hybrid solar system
    250KW hybrid solar system
    PV Array
    550W*364PCS
    550W*444PCS
    Hybrid Inverter
    Hybrid Inverter 100kw *2PCS parallel
    Hybrid Inverter 100kw *2PCS parallel
    PV Combiner Box
    28 input 28 output
    37 input 37 output
    Monitoring Module
    1pc
    1pc
    Battery Solutions
    400kwh
    500kwh
    Mounting Bracket
    Roof/Ground Mounting(Design by your customer requirement)
    Accessories
    PV cable,MC4 Connector,Installation tools
    Predesign
    YES
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

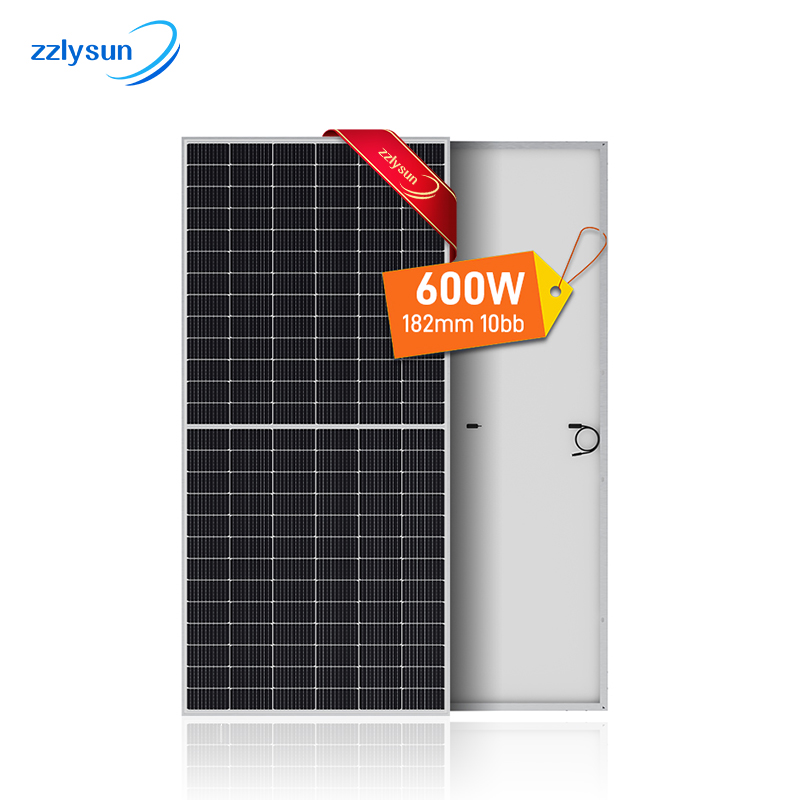

    ❖ Solar Panel
    1.Power:650W
    2.The quantity of Cell:132PCS
    3.Solar cells size:210*05mmmm
    4.Dimensions:2384x1303x35mm((LxWx H)
    5.Open Circuit Voltage-Voc[V]:45.29V
    6.Short Circuit Current-lsc[A]:18.43A
    7.Max Power Voltage-Vmp[V]:37.39V
    8.Max Power Current-lmp[A]:17.39A
    9.Module Efficiency-p:20.92%
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ❖ Hybrid Grid Solar Inverter

    1. Rate Power: 150KW
    2. MPP voltage range:480V-800V
    3.AC Voltage Regulation:400v
    4.AC grid frequency:50Hz/60Hz
    5.Max PV Power:225KW
    6. MPPT Efficiency :98.2%
    7.AC grid connection type:3W+N+PE
    8.Nominal voltage:360V~440V
    9. Rated current:450A
    10. Max. charge current:450A
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    Ener logger
    1.Power Adaptor:Input 100~240V,50/60hz;
    AC Output 5V(+/-15%),1A DC
    2.Power Consumption:2.5W
    3.Max Communication Range:500m
    4.Communication with inverters:RS485
    5.Communication with server :TCP
    (Modbus TCP protocol)
    6.Support Network:Ethernet
    7.Data Transfer Interval:5 minutes
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

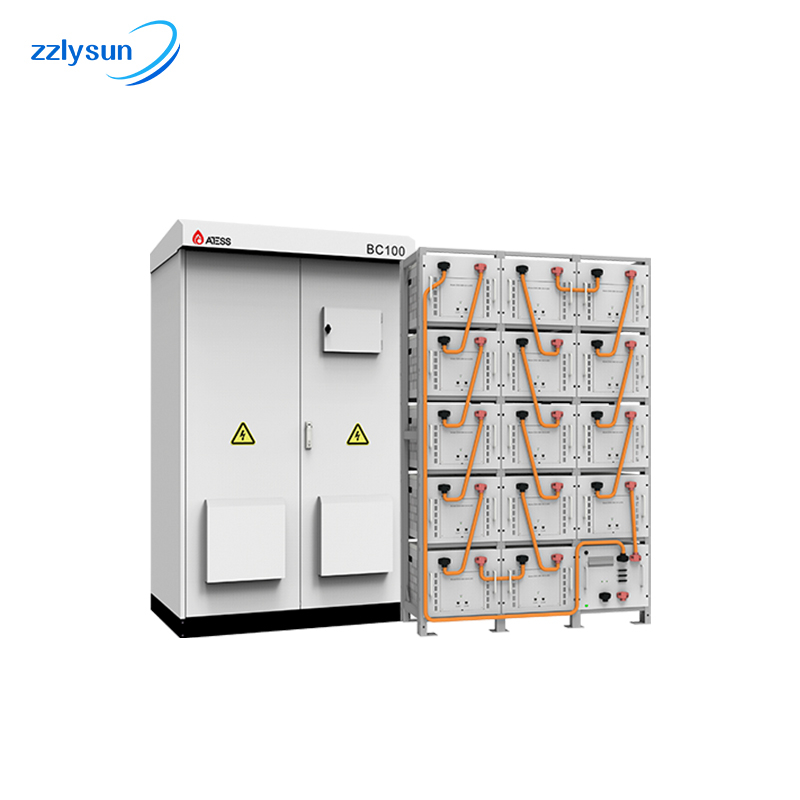

    High Voltage Lithium Battery
    1.Battery Module:76.8V 200AH
    2.Configuration:19 battery modules+1 BPU
    3.Rated Capacity:200ah
    4.Rated Energy:145.92kwh
    5.Rated Voltage:729.6V
    6.Voltage range:638.4~832.2V
    7.Rated Charge/discharge:0.5C
    8.Max charge/discharge:1C
    9.AC internal resistance:<50m Ω
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

    ❖ Accessories
    1.PV DC Cable
    4mm2 or 6mm2

    2.Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

    ❖ Accessories
    1.PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

    2.MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ❖ Mounting Bracket
    1.Good Appearance
    2.Easy and flexible installation.
    3.Diversified design
    4.Light dead-weight
    5.Save installation materials
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ❖ Quality gurantee
    The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ
    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your payment.
