Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

Zhengzhou LingYang New Energy Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers

    Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers
    • Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers
    • Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers
    • Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers
    • Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers
    • Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers
    • Buy cheap Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery from wholesalers

    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 25kw hybrid solar
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.75/watts 30000-59999 watts
    • Product Details
    • Company Profile

    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

    Complete set 20kw 25kw 35kw solarmodule lithium battery home use hybrid energy storage solar system

    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

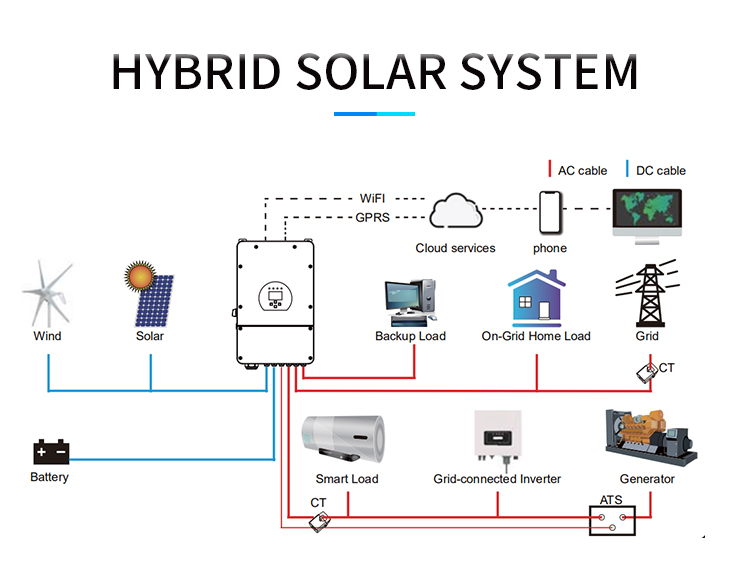

    General mode:
    Deye Hybrid inverter,electrical equipment,grid.It aims to store the surplus energy in the battery and supply the
    load when needed.It is also helpful in introducing your electricity bills and improve your energy independence.When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid.
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    Product List
    20KW Hybrid Grid Solar
    25KW Hybrid Grid Solar
    30 Hybrid Grid Solar
    PV module
    36pcs*550W
    45pcs*550W
    55pcs*550W
    PV combiner box
    3 Input 3 output
    3 Input 3 output
    5 Input 5 output
    Inverter
    Deye Hybrid Inverter 20kw
    Deye Hybrid Inverter 25kw
    Deye Hybrid Inverter 30kw
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    High Voltage Lithium Battery
    Lithium Battery
    Battery Voltage
    192V200AH(40kwh)
    480V100AH(50kwh)
    360V200AH(72kwh)
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Product List
    35KW Hybrid Grid Solar
    40KW Hybrid Grid Solar
    50KW Hyrbrid Grid Solar
    PV module
    64pcs*550W
    72pcs*550W
    90pcs*550W
    PV combiner box
    4 Input 4 output
    6 Input 6 output
    6 Input 6 output
    Inverter
    Deye Hybrid Inverter 35kw
    Deye Hybrid Inverter 40kw
    Deye Hybrid Inverter 50kw
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    High Voltage Lithium Battery
    Battery Voltage
    360V200AH(72kwh)
    384V200AH(80kwh)
    480V200AH(100kwh)
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

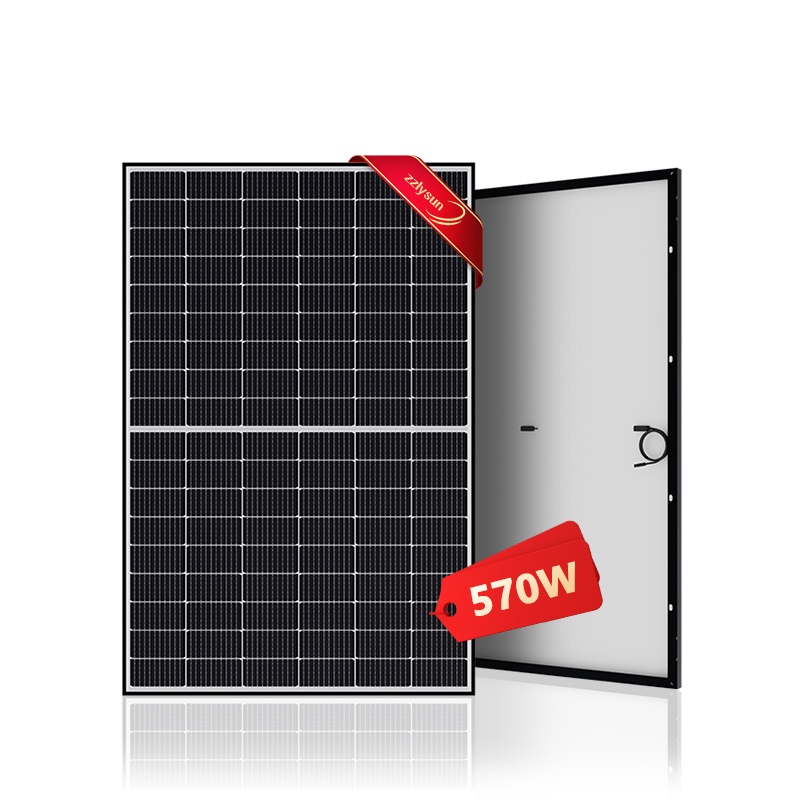

    ❖ Solar Panel
    1.Power:540~560W
    2.The quantity of Cell:144PCS
    3.Solar cells size:182*91mm
    4.Dimensions:2279x1134x35mm(LxWx H)
    5.Open Circuit Voltage-Voc[V]:49.90V
    6.Short Circuit Current-lsc[A]:14.00A
    7.Max Power Voltage-Vmp[V]:41.96V
    8.Max Power Current-lmp[A]:13.11A
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

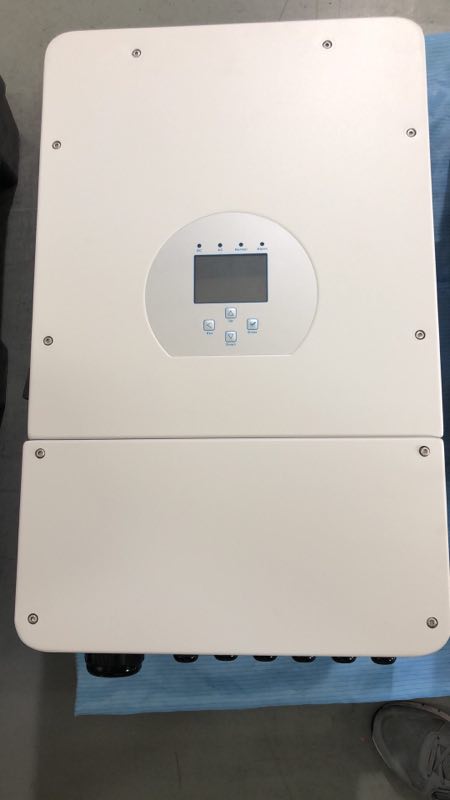

    ❖ Hybrid Grid Inverter
    1. Rate Power: 20KW/25KW/30KW/35KW/40KW/50KW
    2.Battery Voltage:160~800VDC
    3.Battery Type:Lithium/Lead-acid
    4. Max DC Input Power:39kw/45.5kw/52kw/65kw
    5.AC Voltage Regulation:Three phase 50/60Hz
    6. MPPT range:150~850vdc
    7.Efficiency (Peak):97.60%
    8.Number of MPPT tracking:2+2+2/2+2+2+2
    9. Peak Power(off grid):1.5 times of rated power, 10 S
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery

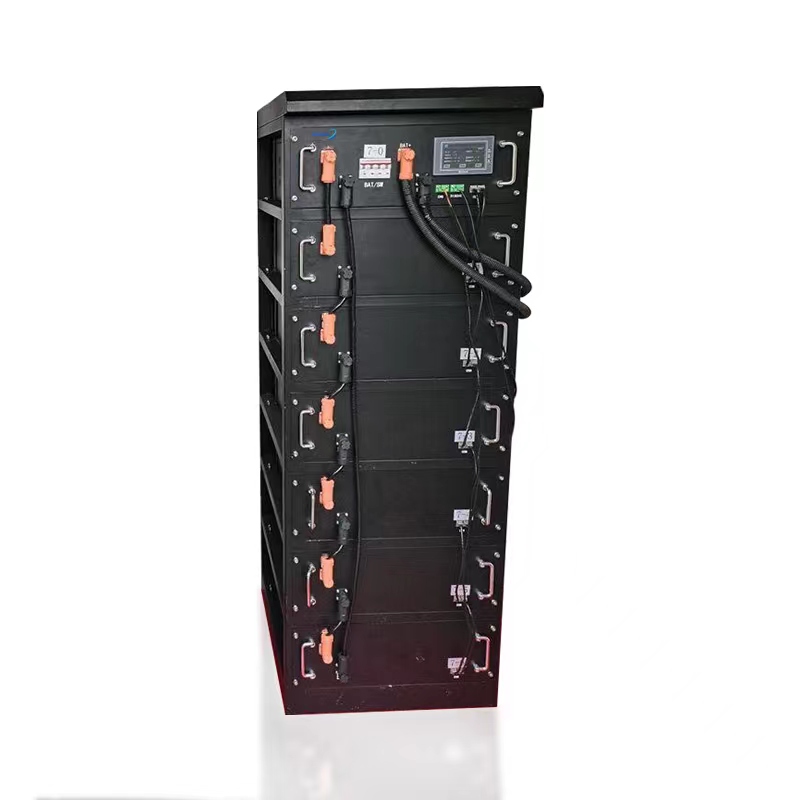

    High Voltage LiFePo4 Battery
    * 15-20 years design life. Up to 6000 + cycle Ilfe
    * Adapt super A+ battery chips
    * Design life is ≥10 years
    * Battery module is scalable for any larger storage system.
    * Battery modular built in high quality BMS. Protect battery cells all the way.
    *Lithium iron phosphate battery cell, stay safe with battery storage at home.
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    ❖ Accessories
    1.PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar
    /Breaker 63A1000V)
    2.MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC
    3.PV DC Cable
    4mm2 or 6mm2
    4.Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    ❖ Mounting Bracket
    1.Good Appearance
    2.Easy and flexible installation.
    3.Diversified design
    4.Light dead-weight
    5.Save installation materials
    PROJECT
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    ❖ Quality gurantee
    The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    Solar Module Hybrid Energy Storage System 20KW 25KW With Lithium Battery
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ

    1.What kind of product can you provide ?

    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?

    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?

    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?

    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.

    5.How many days will the product delivery?

    Re:All the package will shipped within 10~20 working days after your deposit of payment.
