    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : 8kw/10kw hybrid solar
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.60/watts 8000-15999 watts
    • Product Details
    • Company Profile

    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC

    hybrid solar system 8kw 10kw with lithium battery 48VDC

    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    General mode:
    When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid;
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    Product List
    8kw hybrid solar system
    10kw hybrid solar system
    PV module
    455W solar*18PCS
    455W solar*22PCS
    PV combiner box
    2 Input 2 output
    2 Input 2 output
    Inverter
    Deye 8kw hybrid inverter
    Deye 10kw hybrid inverter
    Monitor
    Wifi Module
    Wifi Module
    Battery
    Lithium Battery or Lead Aid Battery
    Lithium Battery or Lead Aid Battery
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Solar Panel
    1.Power:445~470W
    2.The quantity of Cell:144PCS
    3.Solar cells size:166*83mm
    4.Dimensions:2094x1038x35mm(LxWx H)
    5.Open Circuit Voltage-Voc[V]:49.56V
    6.Short Circuit Current-lsc[A]:11.32A
    7.Max Power Voltage-Vmp[V]:41.21V
    8.Max Power Current-lmp[A]:10.08A
    9.Module Efficiency:20.47%
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC

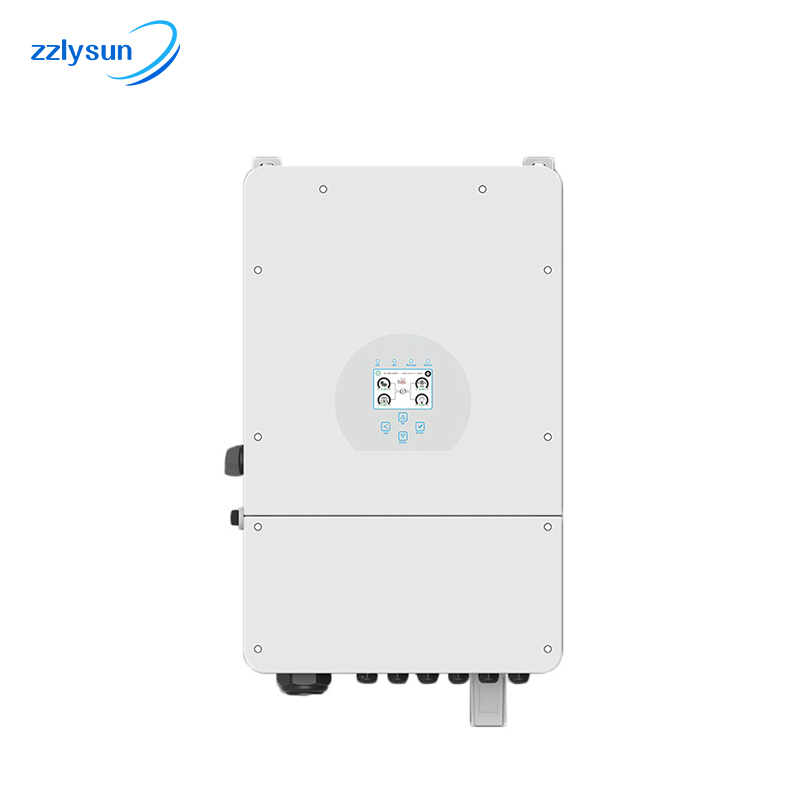

    ❖ Hybrid Solar Inverter
    1. Rate Power: 8000W/10000W
    2.Battery Voltage:40~60V
    3.Battery Type:Lithium Battery/Lead Aid
    4. MPP voltage range:200~600V
    5. AC Voltage Regulation:230V/400V
    6. AC grid frequency:50Hz/60Hz
    7. Max PV Power:10.4KW/13KW
    8. Max. Efficiency :99%
    9. AC grid connection type:3W+N+PE
    10. Peak Power (off grid):<10S
    11.No. of MPP trackers:2pcs
    12.Max. input current per MPP tracker:
    13A+13A/26A+13A
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Lithium Battery
    1. Nominal Voltage:51.2V
    2. Capacity:200Ah
    3. Energy:10240Wh
    4. Cycle Life:
    ≥5000 cycles @ 80% DOD, 25℃, 0.5C
    ≥4000 cycles @ 80% DOD, 40℃, 0.5C
    5. Design Life:≥10 years
    6. Charge Cut-off Voltage:56.0V±0.5V
    7. Dimensions:680 x485 x180(220)mm
    8. Weight:Approx:98kg
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC

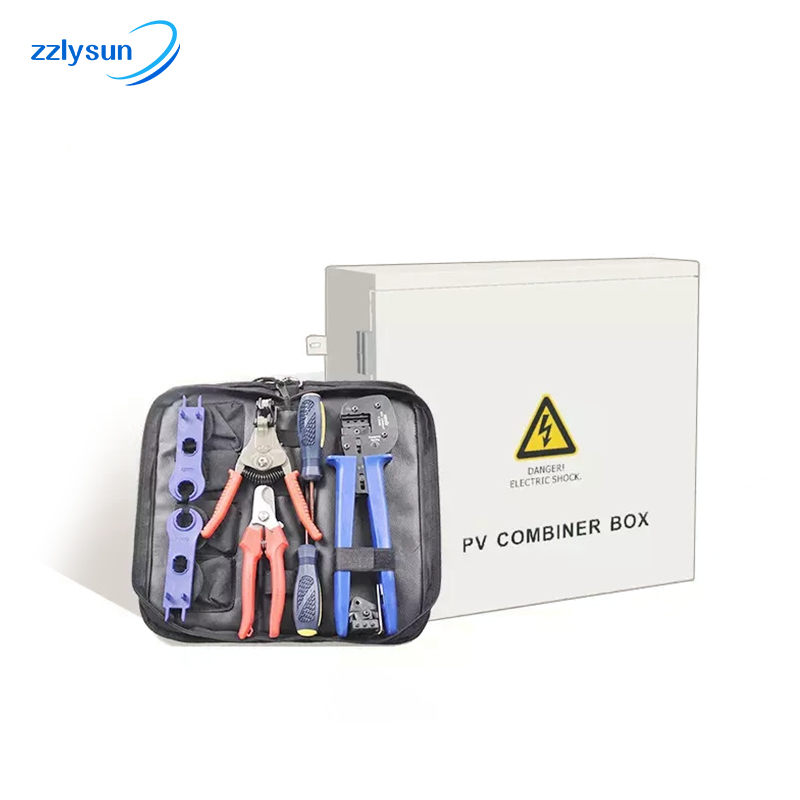

    ❖ Accessories
    1. PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)
    2. Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC

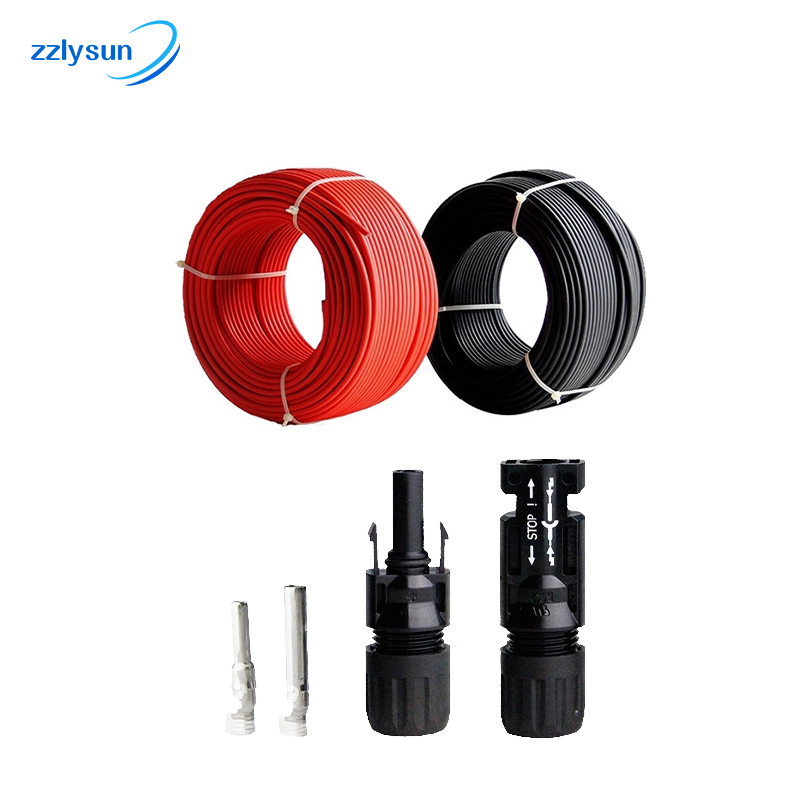

    ❖ Accessories
    1. PV DC Cable
    4mm2 or 6mm2
    2. MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Mounting Bracket
    1. Good Appearance
    2.Easy and flexible installation.
    3.Diversified design
    4.Light dead-weight
    5.Save installation materials
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    Advantage
    The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Quality gurantee
    The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    Hybrid Solar Panel Power System 8KW 10KW With Lithium Battery 48VDC
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ
    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your deposit of payment.
