    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter

    Ask Lasest Price
    Brand Name : Goodwe
    Model Number : 15kw hybrid solar inverter
    Supply Ability : 10 Carton/Cartons per Day
    Price : $0.49/watts 3000-9999 watts
    • Product Details
    • Company Profile

    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter

    China wholesale price high low frequency lifepo4 battery solar power system 15kw 10kw hybrid solar inverter

    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    General mode:
    When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid.
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Goodwe Advantage:

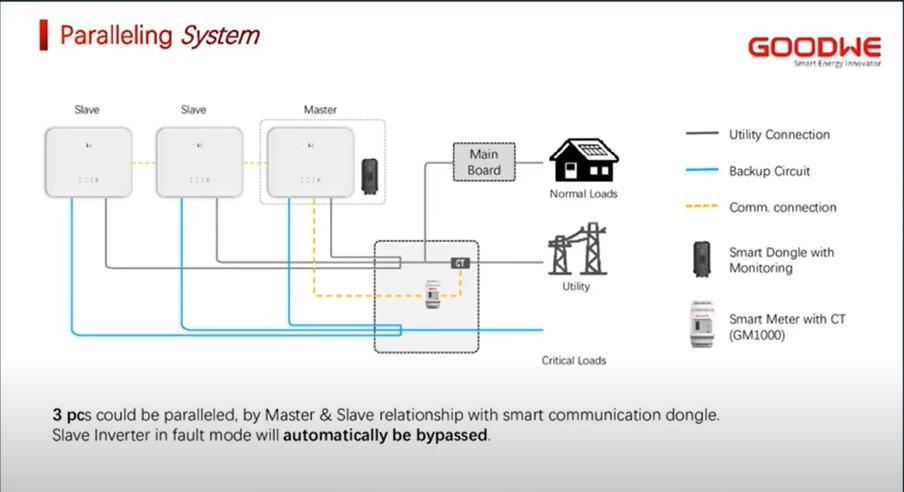

    The GoodWe ES G2 inverter, ranging from 3 to 6kW, is a single-phase hybrid inverter designed to increase self-consumption of the generated solar energy, with the ability to control the flow of energy intelligently. The inverter can automatically realize UPS-level switching to the back-up mode in less than 10ms, with strong backup ability to withstand heavy loads like air conditioners. Its smart design also offers great flexibility for demanding scenarios as it supports parallel connection for dependable backup power supply. Featured with plug-and-play, compact design, and minimal weight, PV installations are quicker and easier to complete than ever before. Importantly, ES G2 is compatible with a wide range of low voltage batteries such as GoodWe Lynx Home U battery. For homeowners looking to achieve a high degree of energy autonomy, reliable power supply and affordable energy prices, the ES G2 is the right choice.
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter

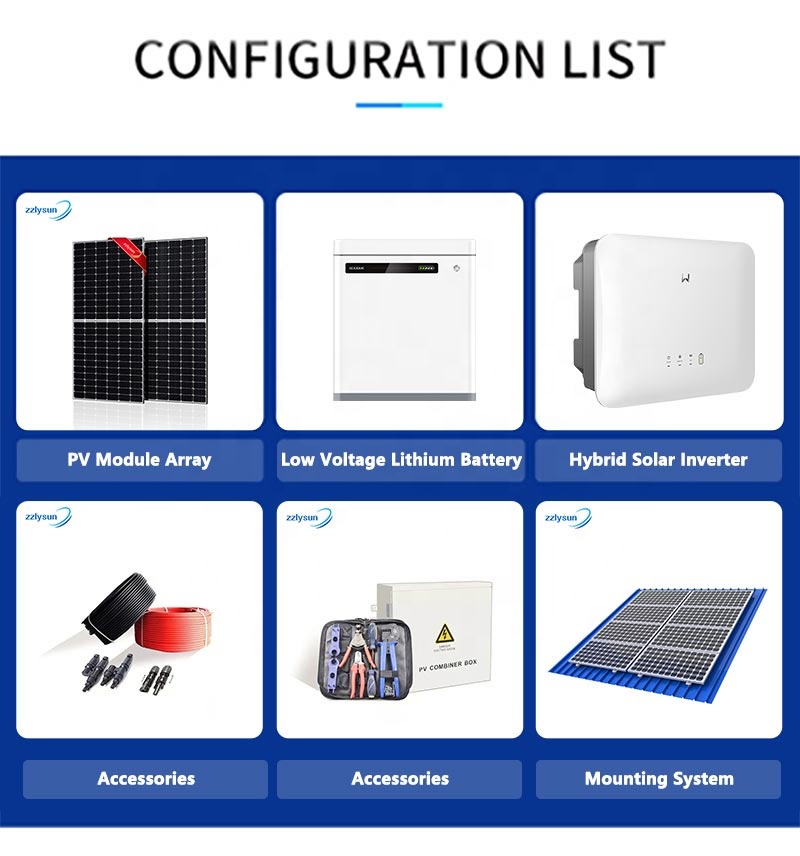

    Product List
    3kw Hybrid grid solar
    3.6kw Hybrid grid solar
    5kw Hybrid grid solar
    6kw Hybrid grid solar
    PV module
    550w*6pcs
    550w*7pcs
    550w*10pcs
    550w*12pcs
    PV combiner box
    1 Input 1 output
    1 Input 1 output
    1 Input 1 output
    1 Input 1 output
    Inverter
    Goodwe hybrid inverter 3KW
    Goodwe hybrid inverter 3.6KW
    Goodwe hybrid inverter 5KW
    Goodwe hybrid inverter 6KW
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    LX U5.4-L(5.4kwh)
    LX U5.4-L(5.4kwh)
    2*LX U5.4-L(10.8kwh)
    2*LX U5.4-L(10.8kwh)
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Product List
    10kw Hybrid grid solar
    12kw Hybrid grid solar
    15kw Hybrid grid solar
    18kw Hybrid grid solar
    PV module
    550w*20pcs
    550w*22pcs
    550w*27pcs
    550w*33pcs
    PV combiner box
    2 Input 2 output
    2 Input 2 output
    3 Input 3 output
    3 Input 3 output
    Inverter
    Goodwe hybrid inverter 5KW*2pcs
    Goodwe hybrid inverter 6KW*2pcs
    Goodwe hybrid inverter 5KW*3pcs
    Goodwe hybrid inverter 6KW*3pcs
    Monitor
    Wifi Module
    Wifi Module
    Wifi Module
    Wifi Module
    Battery
    2*LX U5.4-L(10.8kwh)
    2*LX U5.4-L(10.8kwh)
    3*LX U5.4-L(16.2kwh)
    2*LX U5.4-L(16.2kwh)
    Mounting System
    Roof mounting/Ground mounting (Design by your requirement)
    Accessories
    MC4 Connector,PV cable,Installations
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Solar Panel
    * Power:540~560W
    * The quantity of Cell:144PCS
    * Solar cells size:182*91mm
    * Dimensions:2279x1134x35mm(LxWx H)
    * Front Glass:3.2mm high transmisson tempered glass
    * Container type:40HQ
    * No. of modules per container:620PCS
    * No. of modules per pallet:31PCS
    * No. of pallets per container:20
    * Packaging box size (LxWxH)[mm]:2300x1145x1260MM
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter

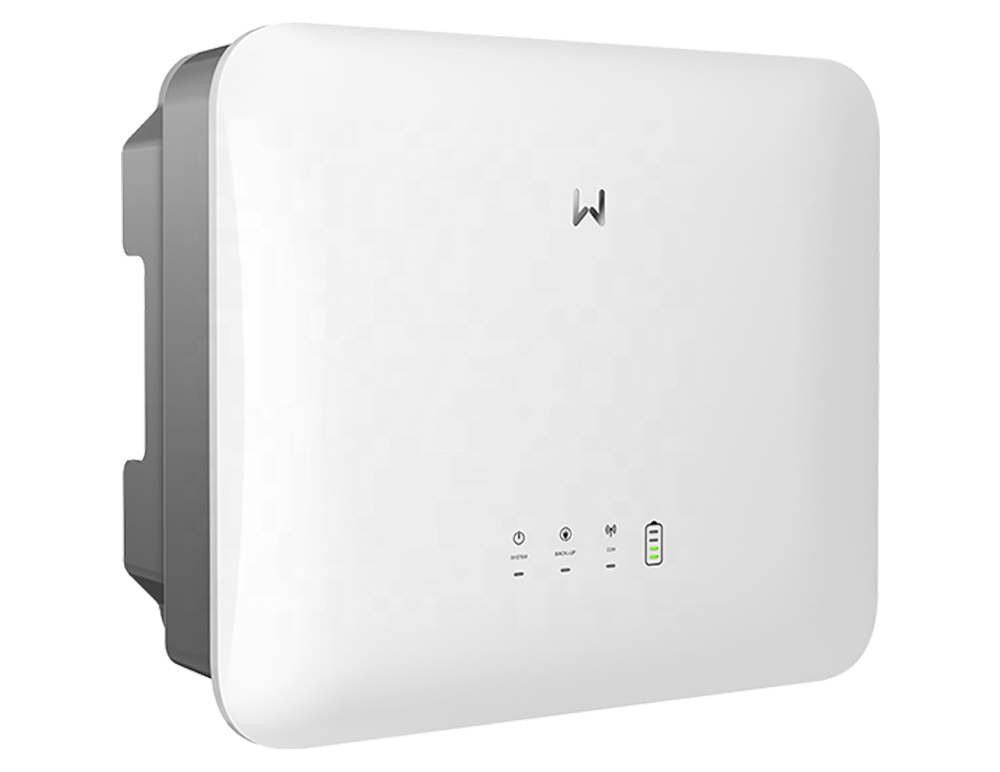

    ❖ On Grid Solar Inverter
    1. Rate Power: 3KW/3.6KW/5KW/6KW
    2. MPP voltage range:60V-550V
    3. AC Voltage Regulation:220V/230V/240V
    4. AC grid frequency:50Hz/60Hz
    5. Max PV Power:
    4.5KW/5.4KW/7.5KW/9KW
    6. MPPT Efficiency :97.6%
    7. Battery Voltage:40~60V
    8. Battery Type:Lithium Battery
    9. No. of MPP trackers:2pcs
    10. Max. input current per MPP tracker:16A
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Goodwe Low Voltage Battery
    1.Rated Energy :5.4kw/10.8kw/16.2kwh/21.6kwh/27kwh/32.4kwh
    2.Cell Type:LFP (LiFePO4)
    3.Nominal Voltage (V):51.2V
    4.Operating Voltage Range (V):48 ~ 57.6
    5.Nominal Dis- / Charge Current (A)*3:50/100/100/100/100/100
    6.Nominal Power (kW)*3:2.88/5.76/5.76/5.76/5.76/5.76
    7.Communication:CAN
    8.Weight:57/114/171/228/285/342
    9.Dimensions (W × H × D mm):505 × 570 × 175 (LX U5.4-L)
    10.Operating Temperature Range (°C):Charge: 0 ~ +50 / Discharge: -10 ~ +50
    11.Cerfiticate:IEC62619, IEC62040, CEC,CE, RCM,UN38.3
    12.Ingress Protection Rating:IP65
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Accessories
    1. PV Combiner Box
    (Anti-reverse/SPD/Fuse/Busbar
    /Breaker 63A1000V)

    2. MC4 Connector
    Rated current: 30A Rated voltage: 1000VDC

    3. PV DC Cable
    4mm2 or 6mm2

    4. Installation tolls
    Wire Crimper, Stripper, MC4 Connector Wrench
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Mounting Bracket
    1. Good Appearance
    2.Easy and flexible installation.
    3.Diversified design
    4.Light dead-weight
    5.Save installation materials

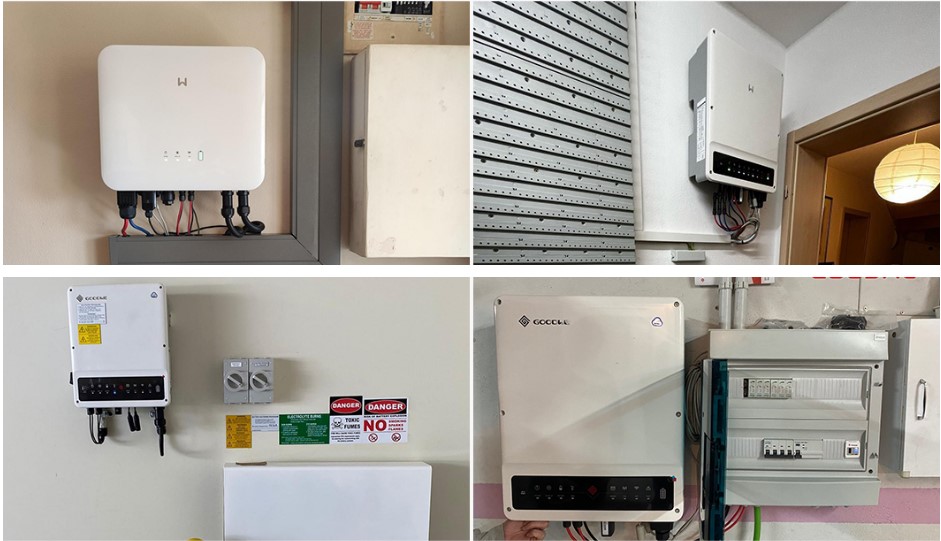

    ❖ PROJECT CASE
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    Advantage
    The hybrid grid soar system are suitable for the country,which are the payment bill is expensive .It is not only can provide the load from the PV array ,but also the battery can provide the electric to the load.
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Quality gurantee
    The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    Lifepo4 Battery Solar Panel Power System 15KW 10KW Hybrid Solar Inverter
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ
    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,
    will let us freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your payment.
